What Is Concrete Testing for Construction? Tests, Timing, Cost, and What the Results Mean

What concrete testing actually is

Concrete testing is the set of procedures that verify the concrete delivered to a construction site matches what the engineer designed and the specification requires. It is not one test. It is a fresh-concrete sequence performed at the truck in the minutes after discharge, and a hardened-concrete sequence performed on specimens cast at that moment and tested in a laboratory over the following weeks.

Both halves matter, and they answer different questions. The fresh tests ask whether this load, right now, is what was ordered: is the water content right, is the air content right for the exposure, is it too hot or too cold to place. The hardened tests ask whether the concrete, once cured, reached the strength the structure was designed around. A load can pass every fresh test and still break low, and a load can arrive out of slump tolerance and still make strength. That is why specifications require both.

The tests themselves are standardized by ASTM International so that a result from one laboratory means the same thing as a result from another. Every specification for structural concrete in the United States references these methods by number, and the technicians running them hold ACI certification that is tested against the same standards.

The fresh concrete tests, in the order they happen

A technician meets the truck, and the first thing that happens is sampling per ASTM C172. The sample has to come from the middle of the load, not the first or last portion out of the chute, and it has to be large enough for every test that follows. A sample taken wrong invalidates everything after it, which is why C172 is on every laboratory's accreditation scope even though it produces no number of its own.

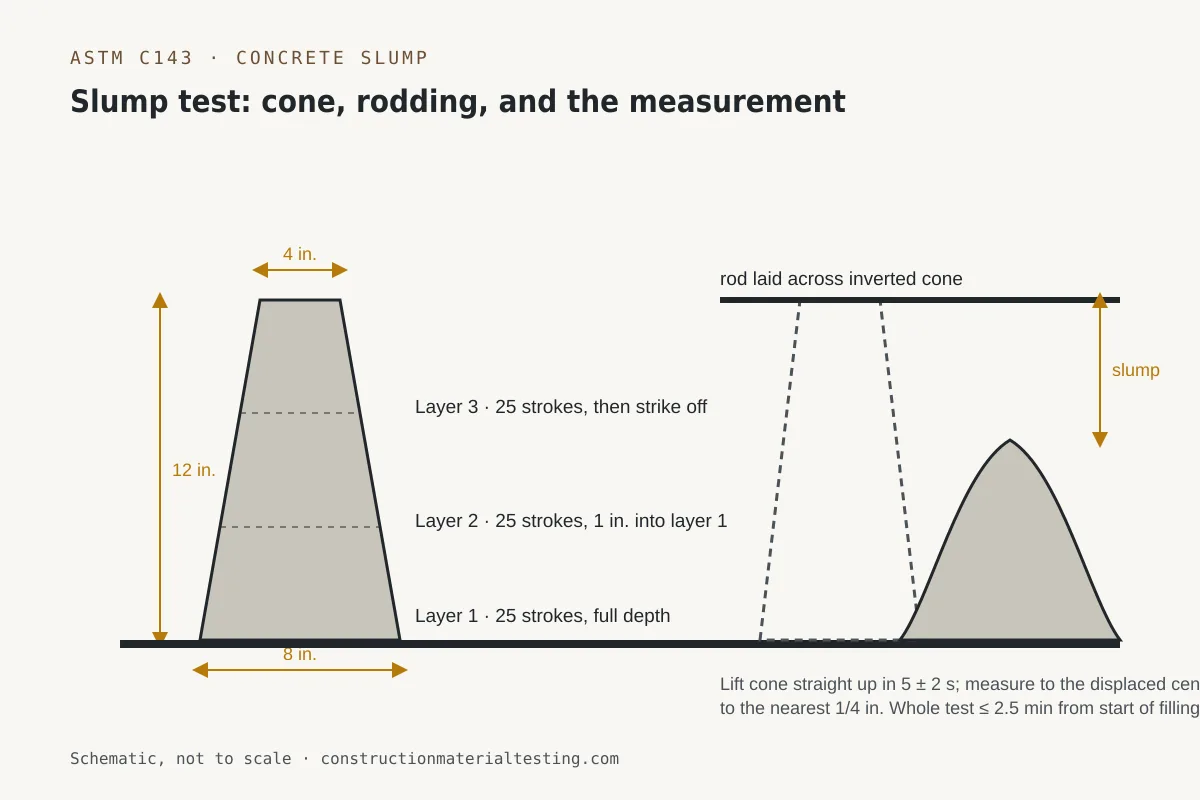

Temperature is measured first per ASTM C1064 because it changes fastest. Most specifications set a maximum, commonly 95°F, and hot-weather concreting on the Gulf Coast or in the desert Southwest runs against that limit all summer. Slump per ASTM C143 comes next: the cone is filled, lifted, and the drop of the concrete is measured. Slump is a proxy for water content and workability, and a specification tolerance is usually written as a target plus or minus an inch or so.

Air content is measured by the pressure method, ASTM C231, for normal-weight concrete, or by the volumetric method, ASTM C173, for lightweight aggregate. Entrained air is what protects concrete from freeze-thaw damage, and a specification for exterior flatwork in a freezing climate will require a range, typically 5 to 8 percent. Too little air and the slab scales in three winters; too much and strength drops. Unit weight per ASTM C138 closes the loop by checking yield, meaning whether the truck actually contains the cubic yards on the ticket.

Finally the technician casts cylinders per ASTM C31, usually 4-by-8-inch specimens, consolidated by rodding in two layers, and beams for flexural strength where a pavement or airfield specification calls for them. The cylinders sit in a curing box on site for the first day or two at a controlled temperature, then travel to the laboratory. Every one of those steps has a tolerance, and most low-strength disputes trace back to a violation of one of them rather than to the concrete.

• Sampling: ASTM C172 — from the middle of the load, large enough for all tests
• Temperature: ASTM C1064 — first, because it changes fastest
• Slump: ASTM C143 — workability and a proxy for water content
• Air content: ASTM C231 (pressure) or C173 (volumetric) — freeze-thaw protection
• Unit weight and yield: ASTM C138 — is the truck full
• Cylinders and beams: ASTM C31 — cast, initially cured on site, transported to the lab

The hardened concrete tests and what the numbers mean

The compressive strength test, ASTM C39, is the one everyone knows. A cured cylinder is placed in a testing machine and loaded until it fails; the maximum load divided by the cylinder's cross-sectional area is the compressive strength in pounds per square inch. Specifications state a required strength at an age, most often 28 days: 3,000 psi for residential flatwork, 4,000 to 5,000 psi for structural slabs and columns, higher for post-tensioned work and precast.

Cylinders are usually cast in sets of four or five per sample. One or two are broken at 7 days as an early indicator, two are broken at 28 days for acceptance, and one is held in reserve in case a 28-day result is questioned. Acceptance under ACI 318 requires that the average of the 28-day breaks meets the specified strength and that no individual break falls more than 500 psi below it. A single low cylinder with a sound companion is not automatically a failure.

Flexural strength per ASTM C78 is the pavement and airfield equivalent, testing a beam in bending rather than a cylinder in compression. Where the concrete is already in place and its strength is in question, cores are cut and tested per ASTM C42. A core strength of 85 percent of the specified strength is generally considered structurally adequate under ACI 318, which is a lower bar than the cylinder criterion because cores are damaged by the drilling process.

The report you receive lists each specimen, its age, its dimensions, the maximum load, the calculated strength, the type of fracture, and the curing history. The fracture type is not decoration: a cone-shaped break indicates a valid test, while a shear or columnar break often points to a capping or alignment problem.

Who orders concrete testing, and who it reports to

On most commercial and public projects the testing agency is retained by the owner, not the contractor. The International Building Code, in Chapter 17, requires that special inspections and materials testing be performed by an approved agency employed by the owner or the owner's agent, and that the agency report to the building official and the registered design professional in responsible charge. The logic is that the party verifying the work should not be paid by the party performing it.

In practice this means the engineer of record writes the testing requirements into the specification, the owner or construction manager hires the agency, and the contractor coordinates the schedule. The contractor's own quality-control testing, where the contract requires it, is separate from and in addition to the owner's quality-assurance testing. Residential work and small commercial jobs are looser, and a contractor will often hire testing directly to satisfy a lender or a municipality; the tests are the same, only the reporting chain differs.

Public agencies add their own layer. Texas Department of Transportation projects, for instance, require technicians certified under the TxDOT program in addition to ACI, and specify Texas test procedures alongside ASTM. Federal work adds USACE or FAA requirements. The testing agency has to hold the right certifications for the owner in front of it, which is one reason to ask about them before the first pour.

How much concrete testing costs

Concrete testing is billed two ways: technician time and per-test laboratory fees. A field technician visit is priced by the hour with a minimum, commonly two to four hours, and covers the fresh-property tests and cylinder casting. Laboratory compressive strength breaks are priced per cylinder, and a set of four or five cylinders per sample adds up quickly on a high-volume pour. Travel outside the agency's normal service area is billed separately.

For a single small pour with one sample, expect a few hundred dollars all-in. For a commercial project with structural concrete placed weekly for six months, testing is typically proposed as a lump sum or a not-to-exceed figure built from the specification's sampling frequency, which is usually one set of cylinders per 100 or 150 cubic yards, or per day of placement, whichever produces more samples. That number is knowable in advance from the plans, which is why a written proposal is the right way to price it rather than a rate sheet.

The cheapest concrete testing is the testing that prevents rework. A rejected load costs the price of the concrete plus the crew's time; a slab that fails strength costs a coring program, an engineering evaluation, and possibly removal. Against that, the technician at the truck is inexpensive insurance, and a specification that skimps on sampling frequency is saving the wrong money.

How long results take

Fresh-property results are immediate; the technician records them on site and a rejected load is rejected before it is placed. Strength results are governed by the curing age in the specification. Seven-day breaks give an early signal that the mix is on track; 28-day breaks are the acceptance basis, and there is no honest way to shorten them, because concrete gains strength on its own clock. High-early-strength mixes and maturity-method monitoring can support form stripping and post-tensioning decisions sooner, but the 28-day acceptance test still runs.

Report turnaround is the part the agency controls. A laboratory running under a documented quality system reviews each break, checks the fracture type and the curing record, and issues the report the same or next business day. If you are receiving strength reports a week after the break, the delay is administrative, and it is a fair thing to push on.

What happens when a cylinder breaks low

A low break triggers a sequence, not a verdict. The first step is to look at the companion cylinder from the same sample: if it made strength, the low result is likely a specimen problem. The second step is to check the curing record. Cylinders left in a hot truck bed, frozen in an unheated cure box, or dried out in transport will break low regardless of the concrete's quality, and the technician's curing log should show what happened between the site and the laboratory.

The third step is capping and end condition. ASTM C1231 governs the neoprene pad caps used on most cylinders, and worn pads or out-of-tolerance cylinder ends concentrate load and fail the specimen early. The fourth step, if the specimen checks out, is the reserve cylinder held for exactly this purpose, broken at a later age. Only after those steps does the investigation move to the structure itself: an engineering evaluation, and where needed a coring program per ASTM C42 to test the in-place concrete.

The lesson for anyone paying for testing is that the chain of custody and the curing records are the product, not just the number. An agency that can show you the cure-box temperature log for the cylinder in question is an agency whose low break means something.
